Structural Foam Molding Design Guide for Large Plastic Enclosures

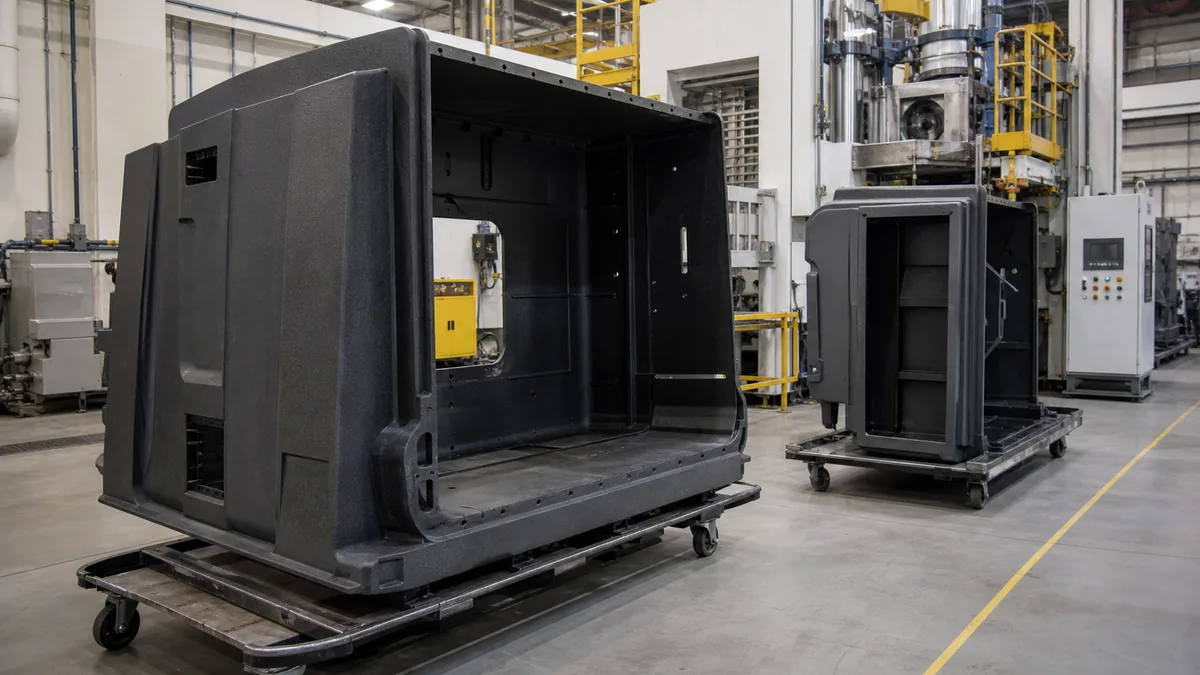

Structural foam molding is a practical option when a plastic part needs stiffness, thick walls, and lower part stress, but does not require the fine detail or thin-wall efficiency of conventional injection molding. It is often used for equipment enclosures, machine covers, pallet and material handling parts, medical device housings, and industrial panels. The process creates a molded part with a solid outer skin and a cellular core, which helps reduce weight and sink while keeping the part rigid.

How the cellular core changes the design

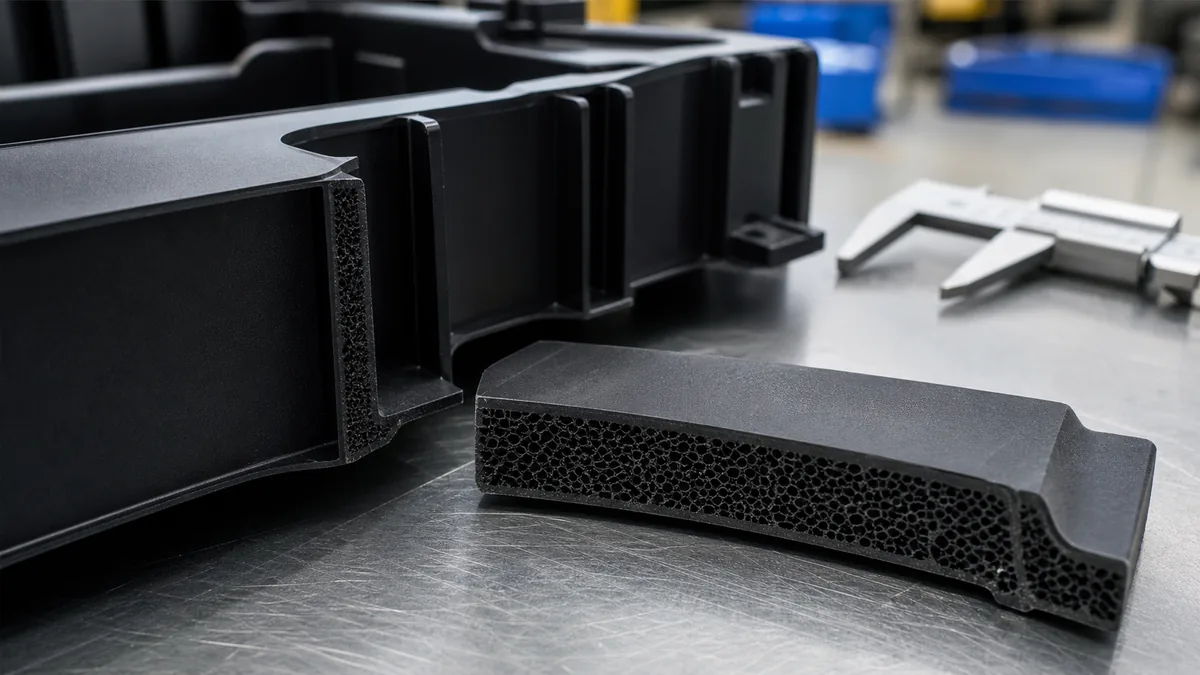

In conventional injection molding, thick plastic sections are usually a warning sign because they can cause sink marks, long cooling cycles, and internal stress. Structural foam molding changes that balance by introducing gas or a foaming action into the melt. The outer surface forms a denser skin against the mold, while the inside develops a lighter cellular structure. This allows thicker sections and large panels that would be hard to mold cleanly by standard injection molding.

The benefit is not free. Structural foam parts generally have a lower-pressure, lower-clamp-force process window and a different surface appearance. The surface may show swirl, flow texture, or a less glossy finish unless secondary finishing is planned. For hidden industrial parts this is often acceptable. For consumer-facing parts, the buyer should define whether painting, texturing, sanding, or another finishing step is required. CNCMAVEN’s услуги по обработке поверхности are relevant when molded parts need a controlled exterior appearance after production.

DFM checklist for large enclosures

The starting point is wall strategy. Structural foam can tolerate thicker walls than standard injection molding, but the part should still avoid abrupt mass changes. Large flat panels should use shape, ribbing, bosses, and edge returns to create stiffness instead of simply adding more plastic everywhere. Ribs can usually be more robust than conventional injection molding ribs, yet they still need draft, radii, and reasonable spacing so material can fill and the part can eject.

• Define a nominal wall thickness range before adding ribs or bosses.
• Use ribs and edge returns to stiffen panels rather than over-thickening the entire wall.
• Add generous radii where ribs meet walls to reduce stress and improve material flow.
• Keep screw bosses supported with gussets, but avoid isolated towers that invite voids or weak knit areas.
• Plan the parting line, gate location, and ejector marks around cosmetic and assembly zones.
• Confirm where CNC machining, drilling, threaded inserts, or metal hardware will be added after molding.

Structural foam vs. injection molding vs. fabrication

Common defects and how to prevent them

Structural foam problems usually come from treating it like ordinary injection molding. A buyer may request a high-gloss consumer finish when the process naturally produces a textured surface, or a designer may add tall unsupported bosses without considering gas distribution and local strength. Large parts also magnify mold-flow and cooling issues. Early supplier feedback on gate location, material grade, wall transitions, and post-finishing can prevent expensive mold changes.

Material and finishing decisions

Common structural foam materials include polypropylene, polyethylene, ABS, polycarbonate blends, and engineering thermoplastics selected for stiffness, impact resistance, temperature exposure, and chemical compatibility. The material should be chosen with the real environment in mind. A machine enclosure in a coolant-rich workshop has different needs than a medical cart panel or a logistics pallet. For outdoor parts, UV stability and color retention matter. For parts near electronics, dimensional stability, flame rating, and insert retention may matter more.

Finishing should be discussed early. If the molded texture is acceptable, the part may only need trimming, deburring, cleaning, and inspection. If the product must match brand colors or hide flow marks, painting or coating may be required. If holes, datum pads, sealing grooves, or precise mounting surfaces are needed, CNC secondary machining should be defined as a controlled operation rather than left to manual drilling. This is where a combined molding and machining supplier can reduce handoff risk.

Supplier questions before tooling

Before approving tooling, ask the supplier how they will control wall thickness, core consistency, gate marks, ejector marks, and cosmetic surfaces. Ask which dimensions are molded as-cast and which are machined after molding. Request a first-article plan that includes dimensional inspection, visual criteria, insert pull testing where needed, and assembly fit checks. For enclosures, it is also useful to test hinge, latch, gasket, and screw performance after environmental exposure, not only at room temperature immediately after molding.

When not to choose structural foam

Structural foam is not ideal for small precision clips, clear optical parts, thin cosmetic covers, or parts requiring a flawless high-gloss molded finish. It is also not the first choice when annual volume is high enough that a conventional injection mold can produce a lighter, thinner, more detailed part at lower total cost. If the design is still unstable, start with CNC-machined prototypes or fabricated samples before committing to mold tooling. If the part is better defined as a sheet metal enclosure, CNCMAVEN’s производство листового металла capability may be a more direct route.
